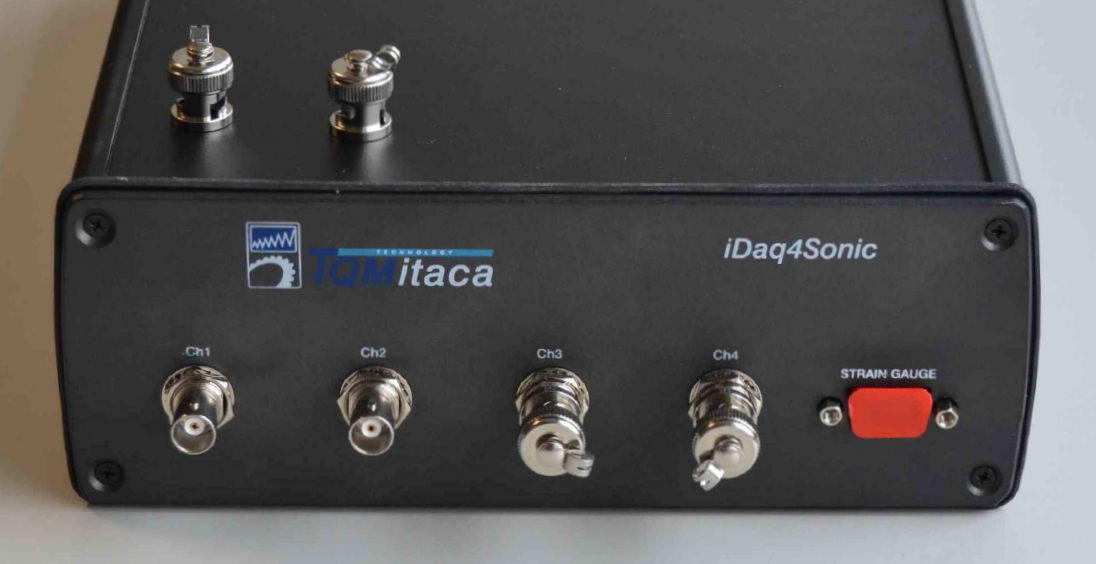

iDaq4Sonic is the interface which allows to connect the sensors required for the functioning of Itasonic©2010 and of Itanoise©. iDaq4Sonic is provided with 4 inputs for IEPE sensors (microphones, accelerometers, load cells...) and 1 Strain Gage input. iDaq4Sonic includes a module 8 In/8 Out (expandable) and an hammer module, for the management of the automatic hammers Imad 908 and Imad 909. The connection to the Pc is made by Ethernet 10/100.

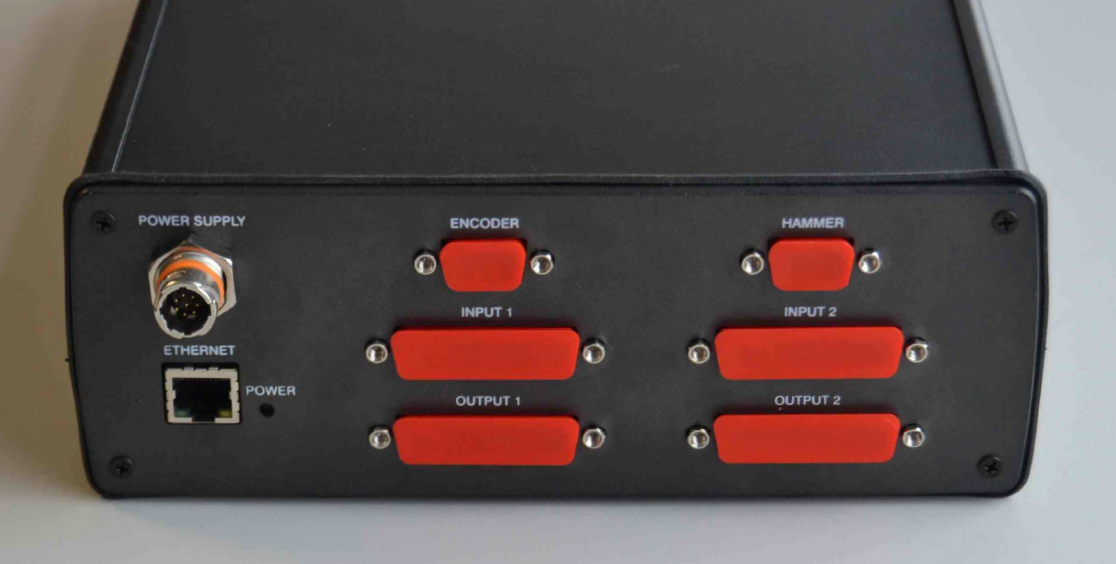

On the back side there are 4 DB25 inputs for the I/O connections, 2 DB9 inputs for hammer and encoder, 1 connector for the power input cable (supplied by the iPower4Sonic module), and the 10/100 Mbit Ethernet connector.

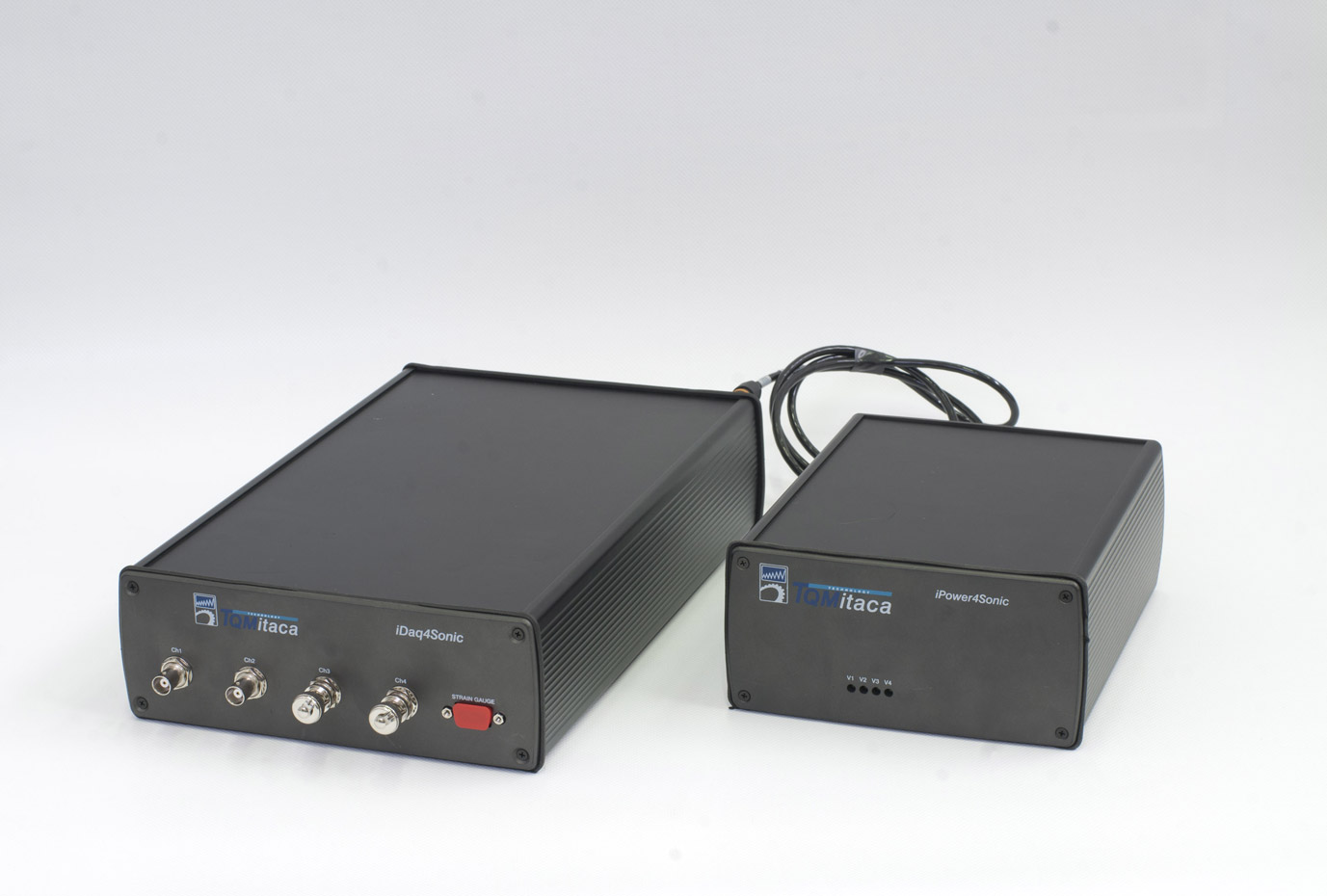

  iDaq4Sonic is powered by iPower4Sonic module.

  Power Supply 110/230 Vac 50/60 Hz

                                          iDaq4Sonic Data Sheet

Power Supply

Voltage

Characteristics

Consumption

+24 V

Linear

24W max.

+8 V

Linear

17.6W max.

-15 V

Linear

15W max.

+24 V

Switching

36W max.

Front Connectors

4 BNC* connectors

 IEPE inputs/ inputs in voltage

1 DB9** connector

Strain Gage input

Back Connectors

4 DB25 connectors

Input/Output connection

2 DB9 connectors

Automatic hammer/Encoder connection

1 connector for the input cable

Power Supply connection

IEPE inputs

Current

4 - 10 mA

Gain

x1, x2, x5, x10

Inputs in voltage

Range

± 10 V

Strain Gage inputs

Voltage

+5 V, +9 V, +15 V

Gain

x10, x100, x1000, x3000

Sampling Rate

Max 125 KHz

I/O

Devices

Voltage

Power

Input

24 V



Output

24 V

24 Watt max.

Hammer

24 V



Ethernet

10/100 Mbit Ethernet connector
